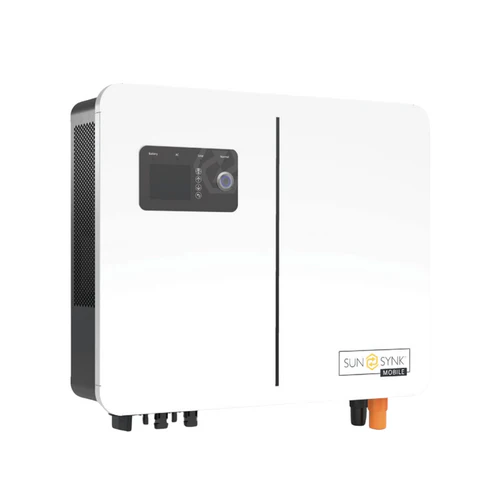

Sunsynk Lynks 6kW 48Vdc Single Phase Hybrid Inverter

Product Features:

• 6kW Maximum Output Power – Delivers sufficient power for essential household and business loads.
• On-Grid & Off-Grid Functionality – Supports both grid-tied and battery-based backup systems.
• High Efficiency – Achieves up to 97.6% efficiency, reducing power losses.
• Fast Switching Time – 10ms bypass and inverter shift time ensures an uninterrupted power supply.
• Configurable Output Voltage & Frequency – Supports 220/230/240V AC single-phase and 50/60Hz operation.
• MPPT Efficiency of 99.9% – Maximizes solar power conversion for optimal battery charging.
• Multiple Protection Mechanisms – Includes battery over-charge protection, low-voltage protection, over-temperature protection, output overload protection, and short-circuit protection.


Specifications:

AC Output Parameters (Backup/Essential Load)

• Max. Output Power: 6000W
• Max. Output Apparent Power: 6000VA
• Peak Output Apparent Power: 12000VA
• Max. Output Current: 26A
• Nominal Output Voltage: 220/230/240V AC (Configurable, Single-Phase)
• Nominal Output Frequency: 50/60Hz (Configurable ±0.2%)
• Max. Bypass Current: 40A
• Shift Time (Bypass & Inverter): 10ms
• Output THDv (Resistor Load): <3%

AC Input Parameters (On-Grid/Battery Charging & Feed to Home Load)

• Max. Input Power: 6000W
• Max. Output Power (Feed to Home Load): 6000W
• Max. Apparent Input Power: 6000VA
• Max. Apparent Output Power: 6000VA
• Nominal Input/Output Voltage: 220/230/240V AC (Auto Adjusted for Home Grid)
• Nominal Input/Output Frequency: 50/60Hz (Auto Adjusted for Home Grid)
• Max. Bypass Current: 40A
• Shift Time (Bypass & Inverter): 10ms

Efficiency

• Max. Efficiency: 97.6%
• Battery to Load Efficiency: 94.0%
• European Efficiency: 97.0%
• MPPT Efficiency: 99.9%

Protection Features

• Battery Over-Charge Protection
• Battery Low-Voltage Protection
• Over-Temperature Protection
• Output Overload Protection
• Short Circuit Protection
